In harsh working environments such as stone quarrying and building demolition, wire saw machines, as the core equipment for concrete cutting, face severe challenges of being soaked in mud and water and eroded by dust all year round. Among them, the guide wheel bearing, as a high - frequency wear - and - tear component, has an average lifespan of less than one month for ordinary products. This not only leads to a replacement cost of thousands of yuan per month but also causes project delays due to frequent shutdowns for maintenance. The advent of the integrated sealed bearing specially designed for the wire saw wheel of wire saw machines has completely changed this industry pain point, redefining the bearing standard in harsh environments with the reliability of automotive bearings.

Empowered by Automotive Bearing - Level Technology, Creating an Armor of Sealing Protection

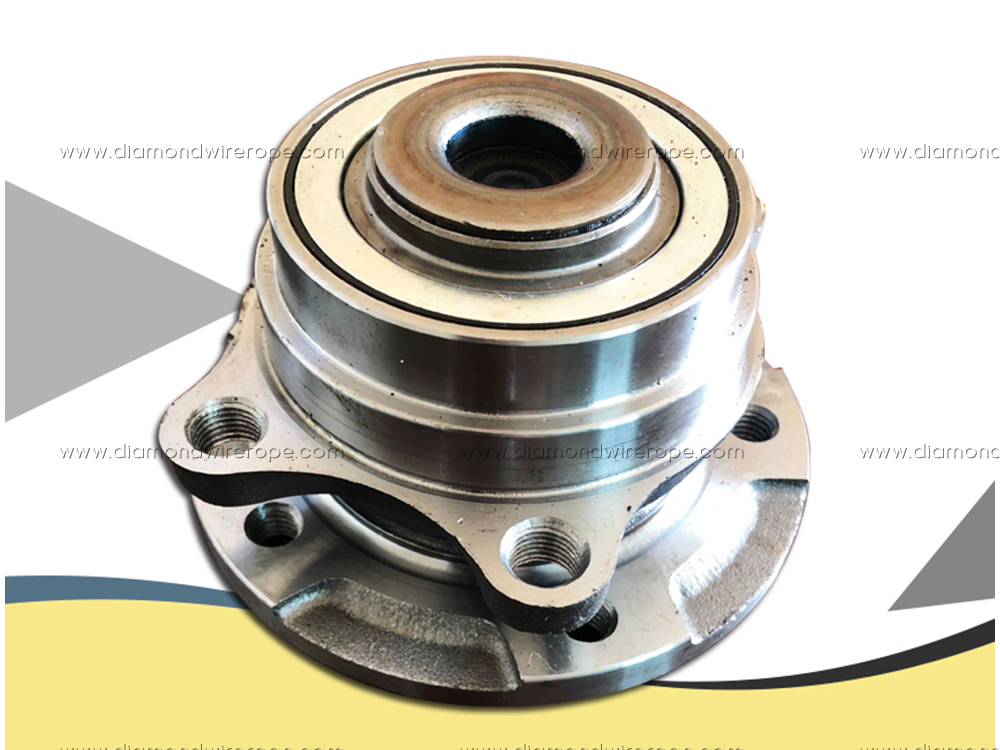

The integrated sealed bearing for wire saw machines adopts the mature technical principle of automotive hub bearings and presents an overall silver - gray metallic texture. Its structural design is precise: the top is a cylindrical load - bearing main body, there is a reinforced metal ring around the circular inner hole in the middle, and the disc - shaped base at the bottom is equipped with four standardized bolt holes, ensuring perfect compatibility with various wire saw machines. The most core innovation of the product lies in the integrated sealing system - through the combination of a one - piece metal sealing ring and a double - lip high - elasticity rubber sealing ring, a 360 - degree fully enclosed space is formed inside the bearing. Even under high - pressure water flushing, it can effectively block the intrusion of mud, water, and dust, fundamentally solving the problem of jamming and failure of traditional bearings caused by grease contamination.

A 24 - Fold Lifespan Leap, with Cost Reduction and Efficiency Improvement Clearly Visible

Laboratory data shows that in the accelerated aging test simulating a muddy and watery environment: ordinary bearings show obvious rust after 200 hours of continuous operation and completely seize up after 400 hours; while after a 5000 - hour test of the integrated sealed bearing for wire saw machines, the internal grease still remains clear, the change in the radial clearance of the bearing is only 0.02mm, and the accuracy attenuation rate is less than 3%. This means that in actual working conditions, its service life can reach more than 2 years, 24 times longer than that of traditional products.

Cost calculations show that: a medium - sized marble quarry has 10 wire saw machines. When using ordinary bearings, each machine needs to be replaced once a month (with a parts cost of 300 yuan + a labor cost of 200 yuan), and the annual maintenance cost reaches 60,000 yuan, and 120,000 yuan for two years. After replacing with integrated bearings, each machine only needs to be replaced once every two years (with a parts cost of 400 yuan + a labor cost of 200 yuan), and the total cost is only 6,000 yuan. It can save 114,000 yuan in two years, and the return on investment is incredibly high.

This bearing is easy to install. There is no need to apply lubricant, and you only need to tighten the screws to complete the installation. It truly saves money, effort, and time.

Finally, I'm Oliver Mo, who manufactures and sells wire saws. I hope to be your partner on the stone quarrying journey. If you encounter any problems when buying a wire saw, you can contact me privately. See you in the next video.
