Pay attention! This wire saw machine for marble quarrying is cutting the mountain. Its cutting speed is very fast, reaching nearly 20 square meters per hour. The power flywheel rotates rapidly, driving the Diamond Wire Saw to rub against the stone being cut at a linear speed of more than 30 meters per second. Square stone blocks are cut out and transported from the quarry to all parts of the country.

A customer asked me this question: What speed should I set the wire saw machine to? I guess many bosses who are just starting in stone quarrying, especially those new to wire saw machines, have this question. In this video, we'll analyze this problem.

Hello, everyone. I'm Oliver Mo, who manufactures and sells wire saws. Solving this problem isn't difficult. We can find the answer from the technical parameter table of the wire saw machine. In the previous video, we talked about the total system power and the main motor power of the wire saw machine. In this video, let's discuss the rated speed of the main motor, the diameter of the power flywheel, and the linear speed of the wire saw. Because once we understand these three parameters, we'll solve the problem of "what speed is the most suitable to set the wire saw machine to".

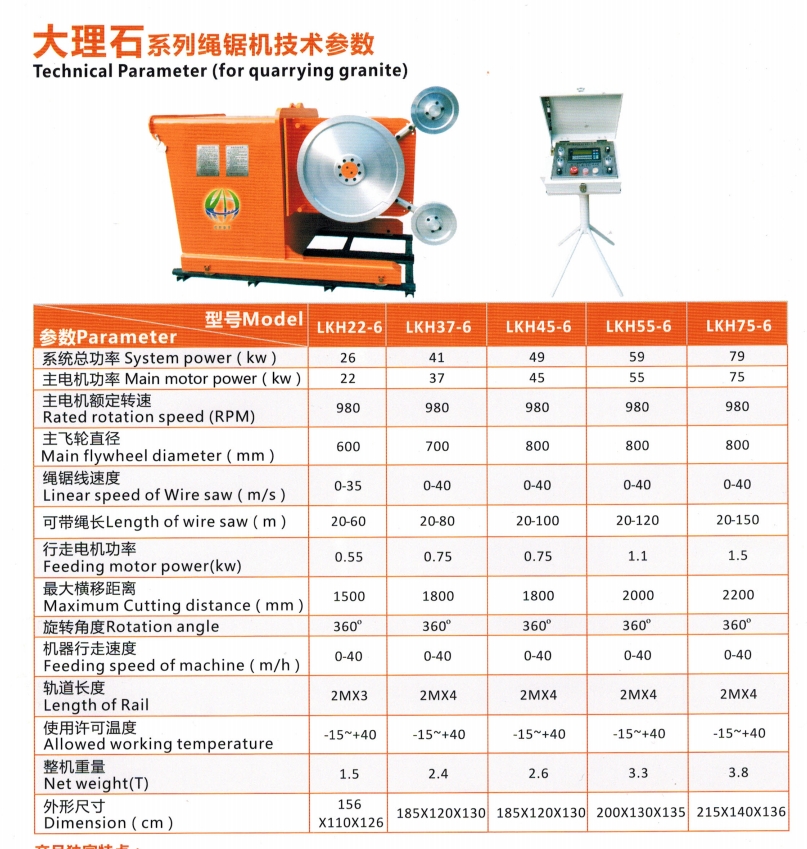

Technical Parameters Analysis

The rated speed of the main motor is 980 revolutions per minute. Note that the unit is revolutions per minute, which means the maximum speed of its main motor is 980 revolutions per minute. You can set a value between 0 - 980, and it will rotate the corresponding number of revolutions per minute.

The diameter of the power flywheel is 800mm, which is a fixed value. Based on these two values and the linear - speed formula, we can calculate the maximum linear speed of this wire saw machine. The linear - speed formula is v = πdn (where v represents the linear speed, d is the diameter of the power flywheel, and n is the rotational speed). Let's substitute the values into the formula for calculation.

First, convert the rotational speed to revolutions per second. 1000 revolutions per minute is 980/60 = 49/3 revolutions per second after conversion. Then substitute d = 0.8 meters and n = 50/3 revolutions per second into the formula, and we get v = π×0.8×49/3 ≈ 41 meters per second.

This is why the technical parameter table indicates that the linear - speed range of this wire saw machine is 0 - 40m/s. Back to our question: what speed is the most suitable to set the wire saw machine to? At this time, we need to check the technical parameters of the diamond wire saw. Taking the cutting of medium - hardness marble as an example, the manufacturer clearly gives the linear - speed range of this model of diamond wire saw as 22 - 32m/s. We can work backward through the formula just mentioned.

When the linear speed is 22m/s: N = v/(πd)=22/(3.14*0.8)=8.7 revolutions per second = 8.7*60 = 525 revolutions per minute.

When the linear speed is 32m/s: N = v/(πd)=32/(3.14*0.8)=12.7 revolutions per second = 11.9*60 = 764 revolutions per minute.

The final conclusion is that the ideal rotational speed is between 525 - 764 revolutions per minute.

Manufacturer's Advice

I guess some people might scold me when they see this. You might say I'm wrong, and you always run the machine at full speed. Yes, that's right. I've done a survey, and many workers basically run the machine at the maximum speed. There's nothing wrong with this, after all, everyone has a different perspective. As a manufacturer, we must provide reasonable parameters for safe production. As quarrying workers, since their wages are calculated based on the amount of quarrying, of course, no one wants to work slowly if they can work faster. As a manufacturer, we don't advocate running the machine at the rated speed. Because when the machine runs at full - load, it may lead to accelerated equipment wear, increased risk of breakdowns, affected equipment performance, and increased safety hazards. After all, safety is the top priority in production!

Finally, I'm Oliver Mo, who manufactures and sells wire saws. I hope to be your partner on the stone - quarrying journey. If you encounter any problems when buying a wire saw machine, you can contact me privately. See you in the next video.

型号Model	SDW37/8	SDW45/8	SDW55/8	SDW75/8
系统总功率（kw) System power	41	49	59	79
主电机功率( kw) Main motor power	37	45	55	75
主电机额定转速（RPM) Rotation Per Minute	750	750	750	750
主电机恒转矩（N.m) Constant torque of main motor	471	573	700	955
主飞轮直径（mm) Main flywheel diameter	700	800	800	800
绳锯线速度( m/s) Linear speed of Wire saw	0-40	0-40	0-40	0-40
可带绳长(m) Length of wire saw	20-80	20-100	20-120	20-150
行走电机功率（kw) Feeding motor power	0.75	0.75	1.1	1.5
最大横移距离（mm) Maximum Cutting distance	1800	1800	2000	2200
旋转角度（°) Rotation angle	360°	360°	360°	360°
机器行走速度(m/h) Feeding speed of machine	0-40	0-40	0-40	0-40
轨道长度（m) Length of Rail	2M*4	2M*4	2M*4	2M*4
使用许叫温度℃ Allowed working temperature	-15~+40	-15~+40	-15~+40	15~+40
整机重量（T) Net weight	2.2	2.3	2.6	3.3
外形尺寸（cm) Dimension	185x120x130	185X120X130	185X120X130	200X130X135
